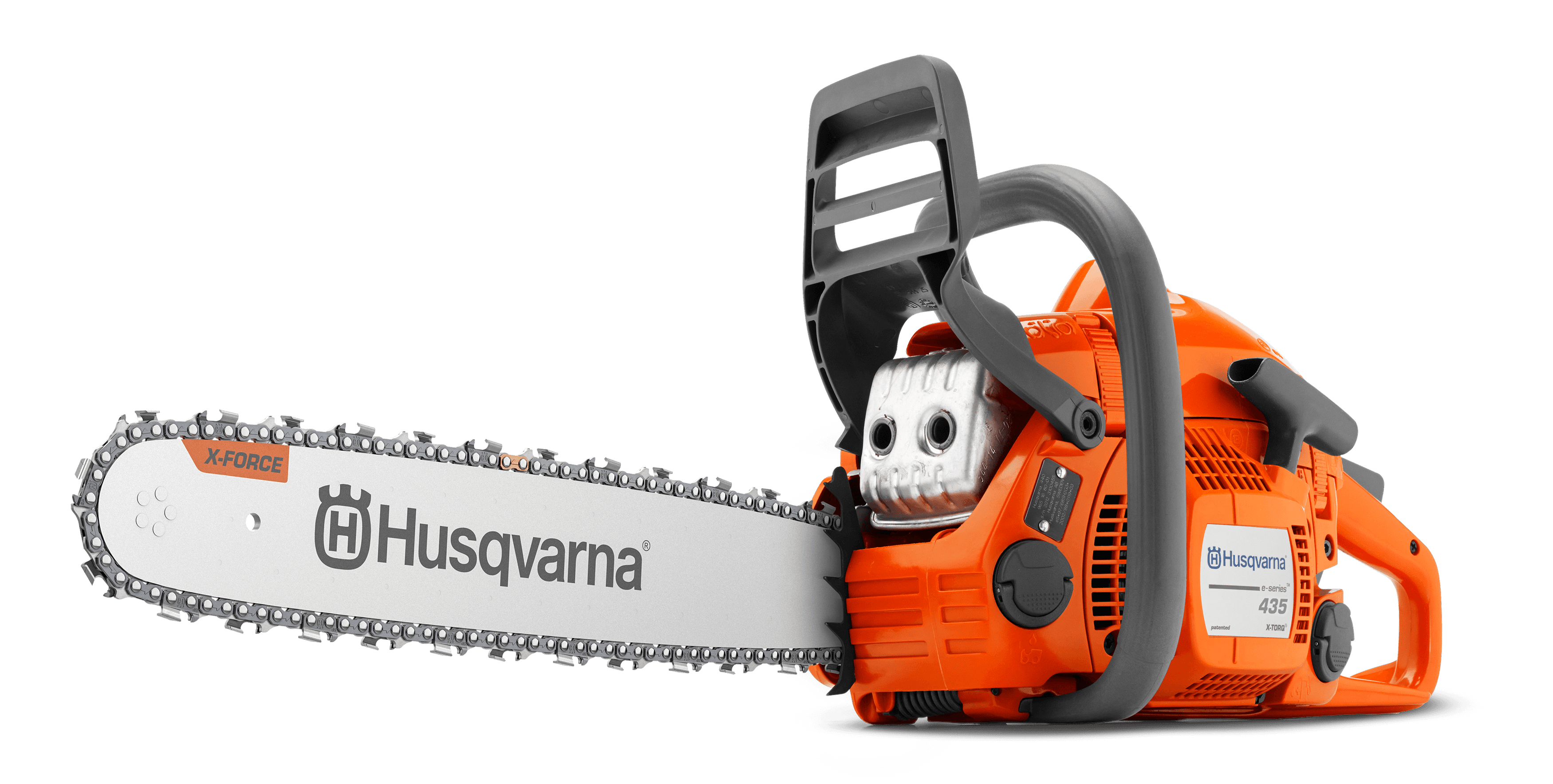

Homeowner/Landowner Chainsaws
435 e-series
$929.00Rec. retail price incl. GST SKU: 970559936- Cylinder displacement (metric)40.9 cm³
- Output shaft power1.6 kW
Product description
Husqvarna 435 is designed for the landowner who prefer a lightweight and efficient all-round petrol chainsaw that’s exceptionally easy to start and manoeuvre. Delivers versatile cutting capacity in a low-weight package, equipped with an array of features for smooth starting and handling: Flip-up tank caps, fuel pump, and auto-return stop switch. The fuel-efficient X-Torq® engine ensures low emission levels. The “e” version adds tool-less chain tensioner and Smart Start® for even easier handling.
Product Information
Features (13)
Flip-Up Fuel Cap
The flip-up fuel cap is easy to open and close when refueling, even if you are wearing thick gloves.
Quick-Release Air Filter
Easily remove and replace the filter after cleaning
Felling Marks
Dedicated marks for increased felling precision
Smart Start® Technology
Specially-designed engine and starter for easy and fast starting with minimum effort
Air Injection™ Technology
Centrifugal air cleaning system expels larger dust and debris particles before they reach the air filter to help improve engine life
Powerful and Efficient X-TORQ® Engine
Great power and efficiency
Three-Piece Crankshaft
Forged three-piece crankshaft delivers maximum durability for even the toughest of jobs
LowVib® Technology
Effective LowVib® dampeners absorb vibration, sparing the user’s arms and hands.
Fuel Indicator
Transparent fuel indicator makes it easy to check fuel level
Snap-Lock Cylinder Cover
Saves time when changing spark plugs and cleaning
Inertia-Activated Chain Brake
Effective inertia-activated chain brake reduces the likelihood of injury due to kickback.
Easy to start
Combined start/stop switch, Smart Start® and fuel pump make the saw very easy to start.
Quick Start with Air Purge
Air purge removes air from carburetor and fuel system for easy starting
Specifications | Art No: 970559936 |
|---|---|
| Output shaft power | 1.6 kW |
| Weight (excl. cutting equipment) | 4.4 kg |
| Cylinder displacement (metric) | 40.9 cm³ |
| Fuel consumption | 1.08 kg/h |
| Fuel tank volume (metric) | 0.37 l |
| Sound pressure level at operators ear | 102 dB(A) |
| Bar length | 38 cm |
| Clutch engagement speed (±120) | 4300 rpm |
| Electrode gap | 0.5 mm |
| Equivalent vibration level (ahv, eq) front handle | 3.8 m/s² |
| Equivalent vibration level (ahv, eq) rear handle | 4.2 m/s² |
| Exhaust emissions (CO average) EU | 355.73 g/kWh |
| Exhaust emissions (CO average) EPA | 312.48 g/kWh |
| Exhaust emissions (HC average) EU | 42.44 g/kWh |
| Exhaust emissions (HC average) CARB | 35.54 g/kWh |
| Exhaust emissions (NOx average) EU | 0.66 g/kWh |
| Exhaust emissions (NOx average) EPA | 0.73 g/kWh |
| Fuel consumption | 652 g/kWh |
| Idling speed | 2900 rpm |
| Maximum power speed | 9000 rpm |
| Oil tank volume | 0.25 l |
| Product size height | 28.2 cm |
| Product size length | 38.7 cm |
| Product size width | 20.7 cm |
| Recommended bar length, max | 18 in |
| Recommended bar length, max | 45 cm |
| Recommended bar length, min | 13 in |
| Recommended bar length, min | 33 cm |
| Sound power level, guaranteed (LWA) | 114 dB(A) |
| Sound power level, measured | 112 dB(A) |
| Torque, max. | 2 Nm |
| Torque, max. at rpm | 6300 rpm |
